Heat Shrink Tubing

Copoint Electronics is specialized in heat-shrinking products. We have helped a lot of customers throughout the world with finding the right solution for their cable problems, ever since the company started 35 years ago. Our company has a lot of connections in this field which enables us to offer a wide range of products. Heat-shrinking products can be used for stranded and solid wire conductors, connections, joints and terminals in electrical work. It has many purposes such as (repairing) insulation, providing abrasion resistance and environmental protection, bundling wires and creating cable entry seals.

We offer two distinguishable categories in heat-shrinking products, heat-shrink tubing and heat-shrink molded shapes. As there are so many different products to choose from, we offer the information on this webpage to help you choose the right product to help you with your cable needs. If you have any questions regarding one of these products or if you need help finding the right heat-shrink products, please feel free to contact us. We are happy to help you with your questions.

To be able to choose the correct heat-shrink tube for your application, it is important to check out the specifications of each tube. Tubes can offer different amounts of resistance, flexibility, shrink ratios and shrink temperatures. Heat-shrink tubing is ordinarily made of polyolefin, which shrinks radially (but not longitudinally) when heated, to between one-half and one-sixth of its diameter.

There are two steps in choosing the right product.

Selecting the Right Size

There are a lot of different products to choose from when it comes to heat-shrink tubing. When choosing a product it is important to know what it will be used for and what conditions it will meet after using it. In the tables below is shown what the specifications are for every tube we can offer. We can offer you tubes from three big brands. HellermannTyton, 3M and TE Connectivity/ Raychem. 3M tubes are generally more expensive than the other two brands. If you request a specific part number, we can always help you find the alternatives from the other brands and offer those to you as well.

Heat-shrink tube size 2:1 (mm)		Cable / Core diameter
1,2/0,6		0,7mm
1,2/0,6		1,1 mm
	2,4/1,2	1,4 mm
3,2/1,6	2,4/1,2	1,9 mm
3,2/1,6	2,4/1,2	2,2 mm
3,2/1,6	4,8/2,4	2,9 mm
6,4/3,2	4,8/2,4	3,8 mm
6,4/3,2	4,8/2,4	4,3 mm
6,4/3,2	9,5/4,7	5,7 mm
6,4/3,2	9,5/4,7	5,8 mm
12,7/6,4	9,5/4,7	7,7 mm
12,7/6,4	9,5/4,7	8,6 mm
12,7/6,4	19,1/9,5	11,4 mm
25,4/12,7	19,1/9,5	15,2 mm
25,4/12,7	19,1/9,5	17,2 mm
25,4/12,7	38,1/19,1	22,9 mm
50,8/25,4	38,1/19,1	34,3 mm
50,8/25,4	76,2/38,1	45,7 mm
101,6/50,8	76,2/38,1	61,0 mm
101,6/50,8	76,2/38,1	68,6 mm
101,6/50,8		91,4 mm

Heat-shrink tube size 3:1 (mm)		Cable/ Core diameter
1,5/0,5		0,7 mm
1,5/0,5		1,3 mm
	3/1	1,4 mm
	3/1	2,6 mm
6/2		2,8 mm
6/2		5,2 mm
	12/4	5,6 mm
18/6	12/4	8,4 mm
18/6	12/4	10,4 mm
18/6	24/8	11,2 mm
18/6	24/8	15,6 mm
40/13	24/8	18,4 mm
40/13	24/8	20,8 mm
40/13		34,6 mm

Selecting the Right Tube

HellermannTyton
PRODUCT	MATERIAL	COLOUR	ADHESIVE LAYER	SHRINK RATIO	AVAILABLE DIMENSIONS (MM)	TEMPERATURE RESISTANT (°C)	HALOGEN FREE	FLAME RETARDANT	CHEMICAL RESISTANT
TL27	Polyolefin	Black		02:01	1,2 - 50,8	-55 tot +135	x
TCN20	Polyolefin	Black		02:01	1,2 - 50,8	-55 tot +125		x
TCN20 Overexp.	Polyolefin	Black		03:01	2,4 - 38,0	-55 tot +125		x

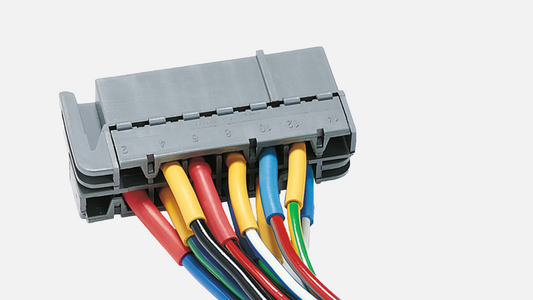

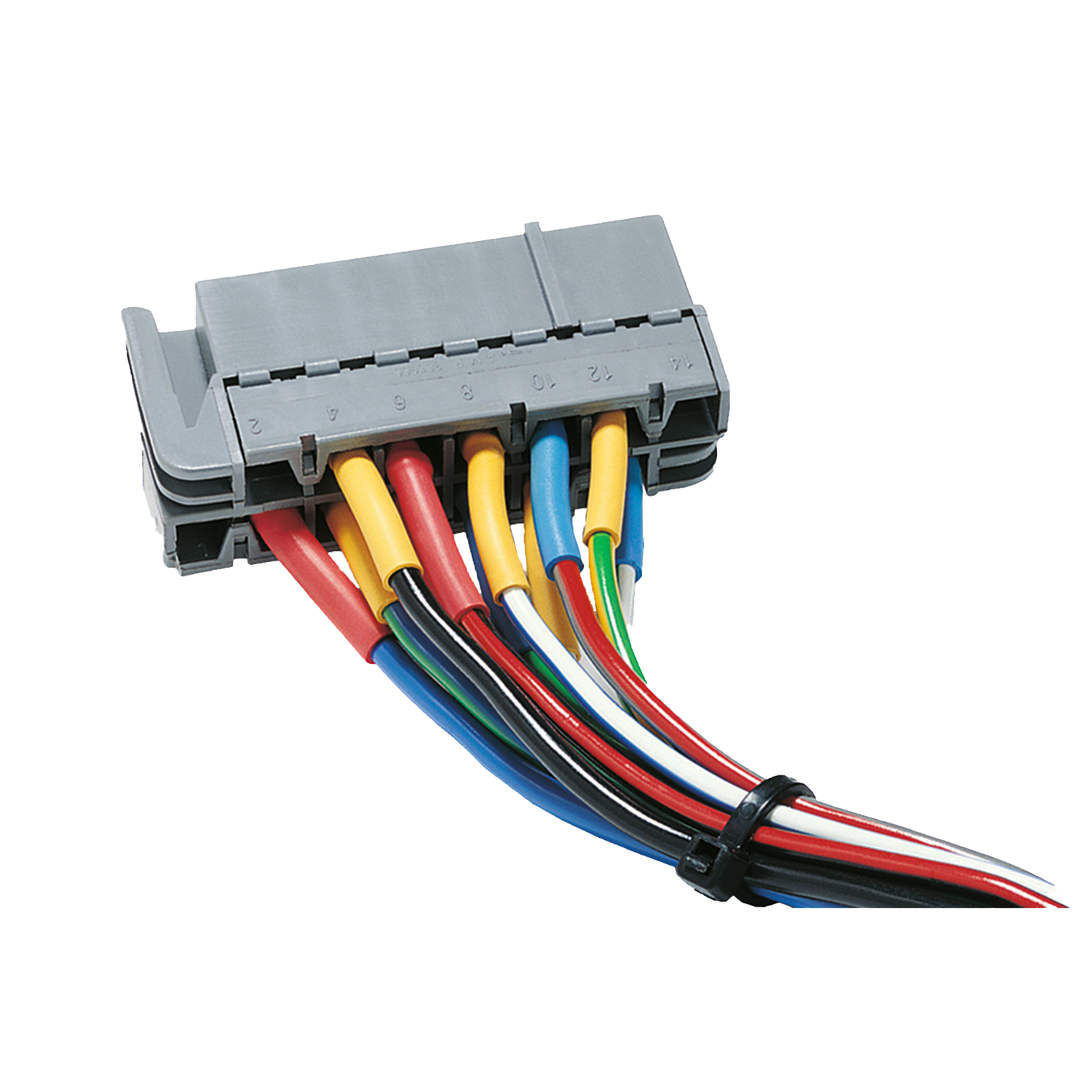

HFT-A	Polyolefin	Multiple colours		02:01	1,2 - 101,6	-55 tot +135
TF21	Polyolefin	Multiple colours		02:01	1,2 - 101,6	-55 tot +135		x

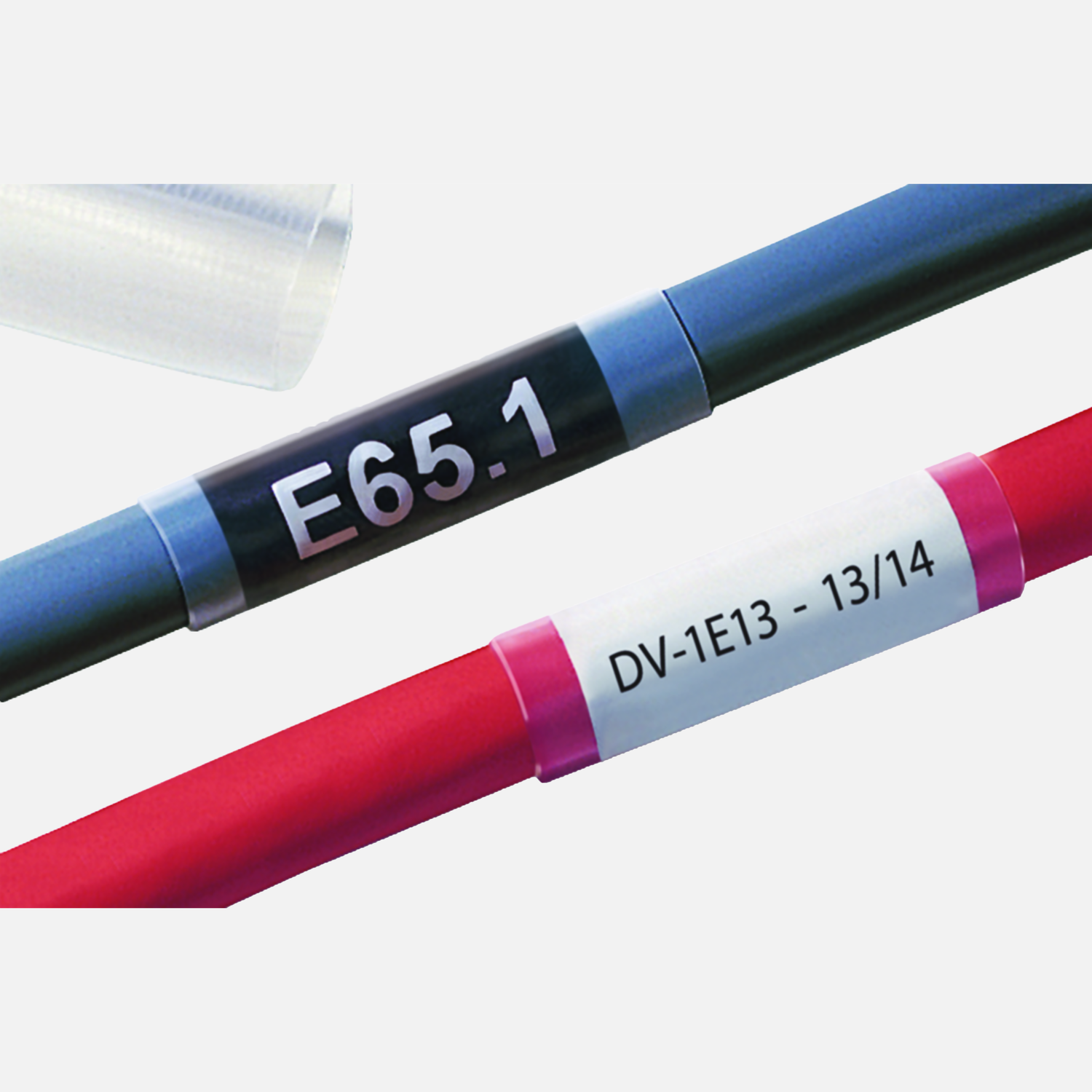

TF24	Polyolefin	Clear		02:01	1,2 - 101,6	-55 tot +135	x		x
TF31	Polyolefin	Multiple colours		03:01	1,5 - 40,0	-55 tot +135		x
TF34	Polyolefin	Clear		03:01	1,5 - 40,0	-55 tot +135	x
TA32	Polyolefin	Black	x	03:01	3,2 - 40,0	-55 tot +125		x
EPS-300	Polyolefin	Black	x	03:01	3,0 - 40,0	-55 tot +125
TR27	Polyolefin	Black		02:01	3,2 - 50,8	-40 tot +105	x	x
TA37	Polyolefin	Black	x	03:01	3,0 - 120,0	-40 tot +105	x	x

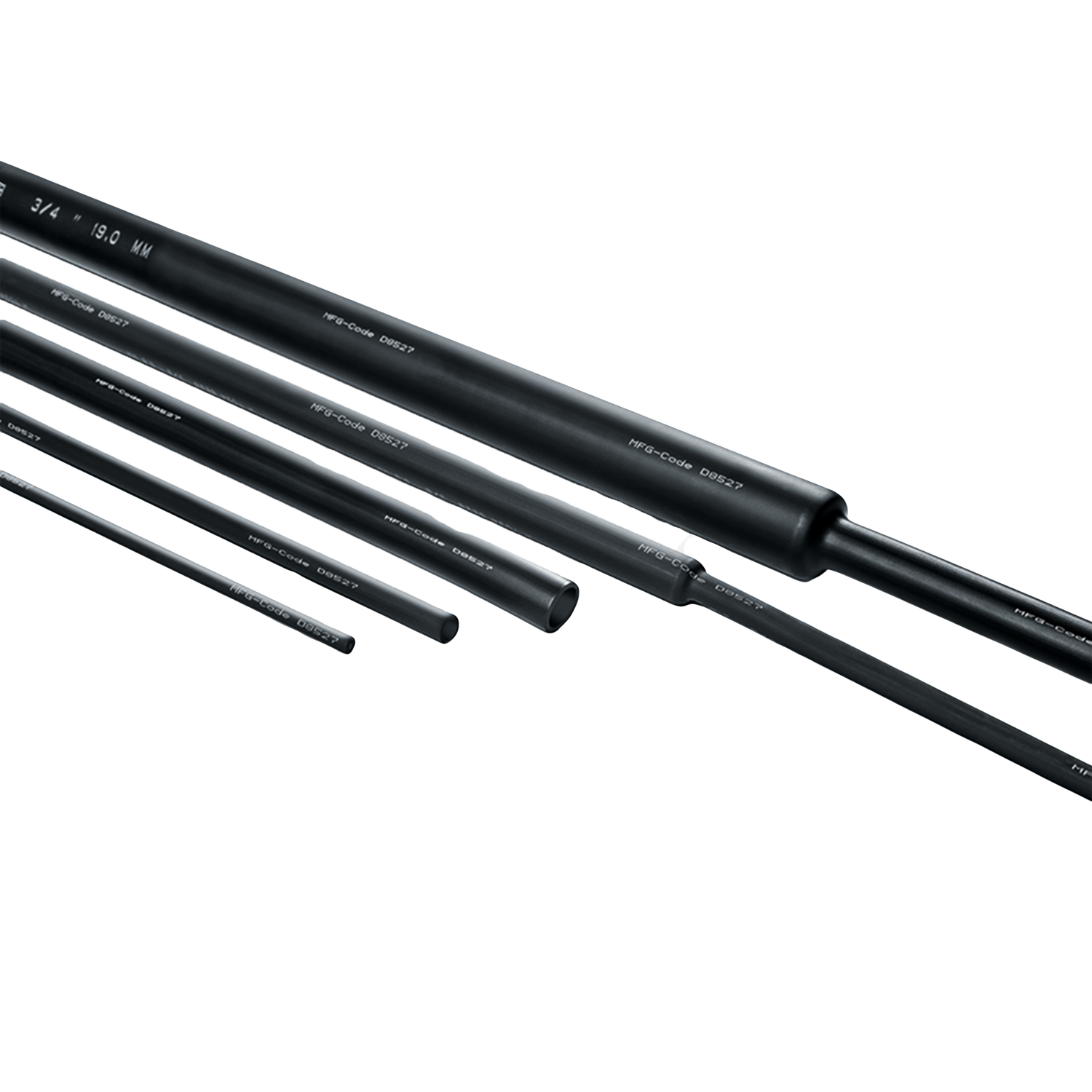

SE28	Elastomer	Black		02:01	3,2 - 102,0	-75 tot +150

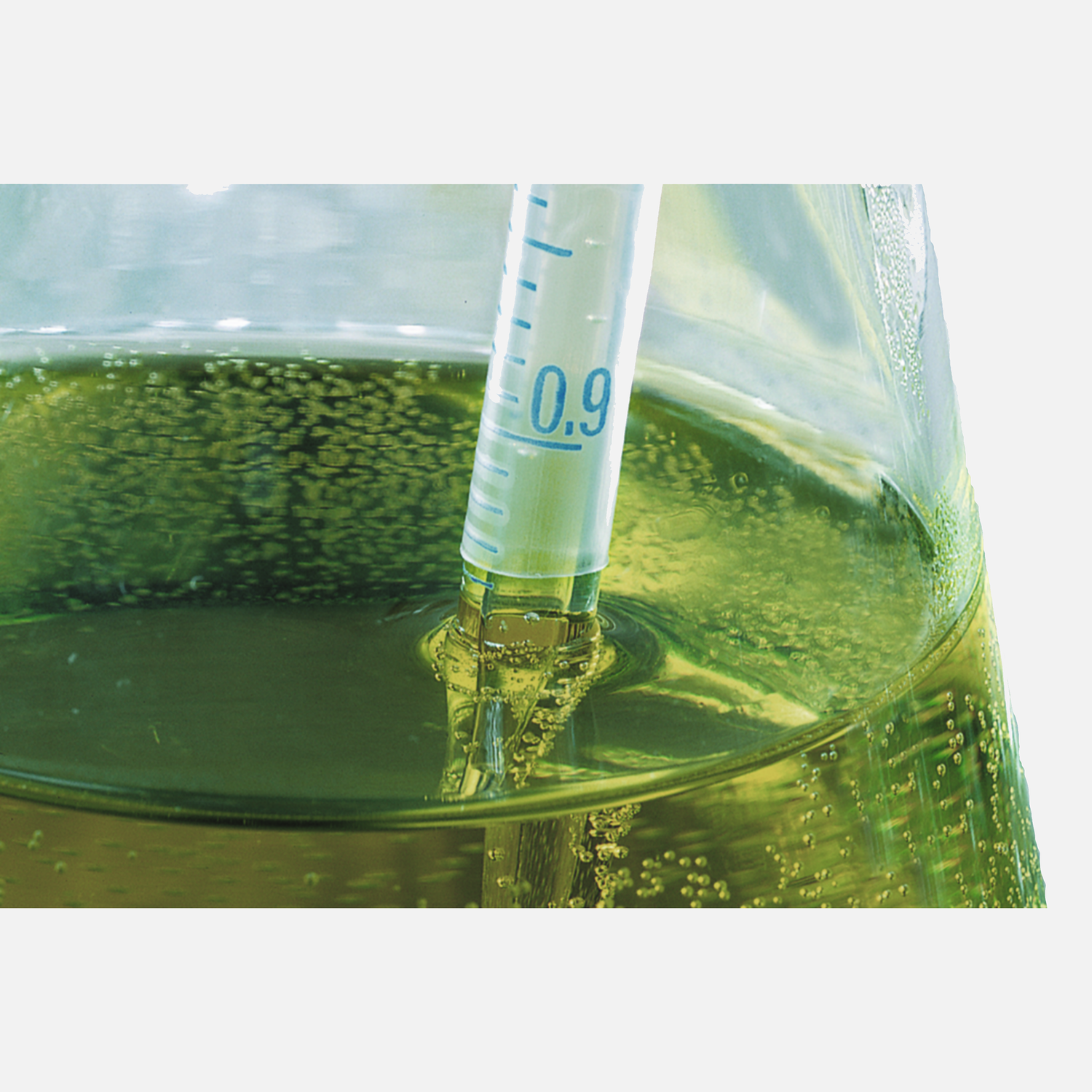

TK20	Polyvinylidene Fluoride	Clear		02:01	1,2 - 50,8	-55 tot +175			x

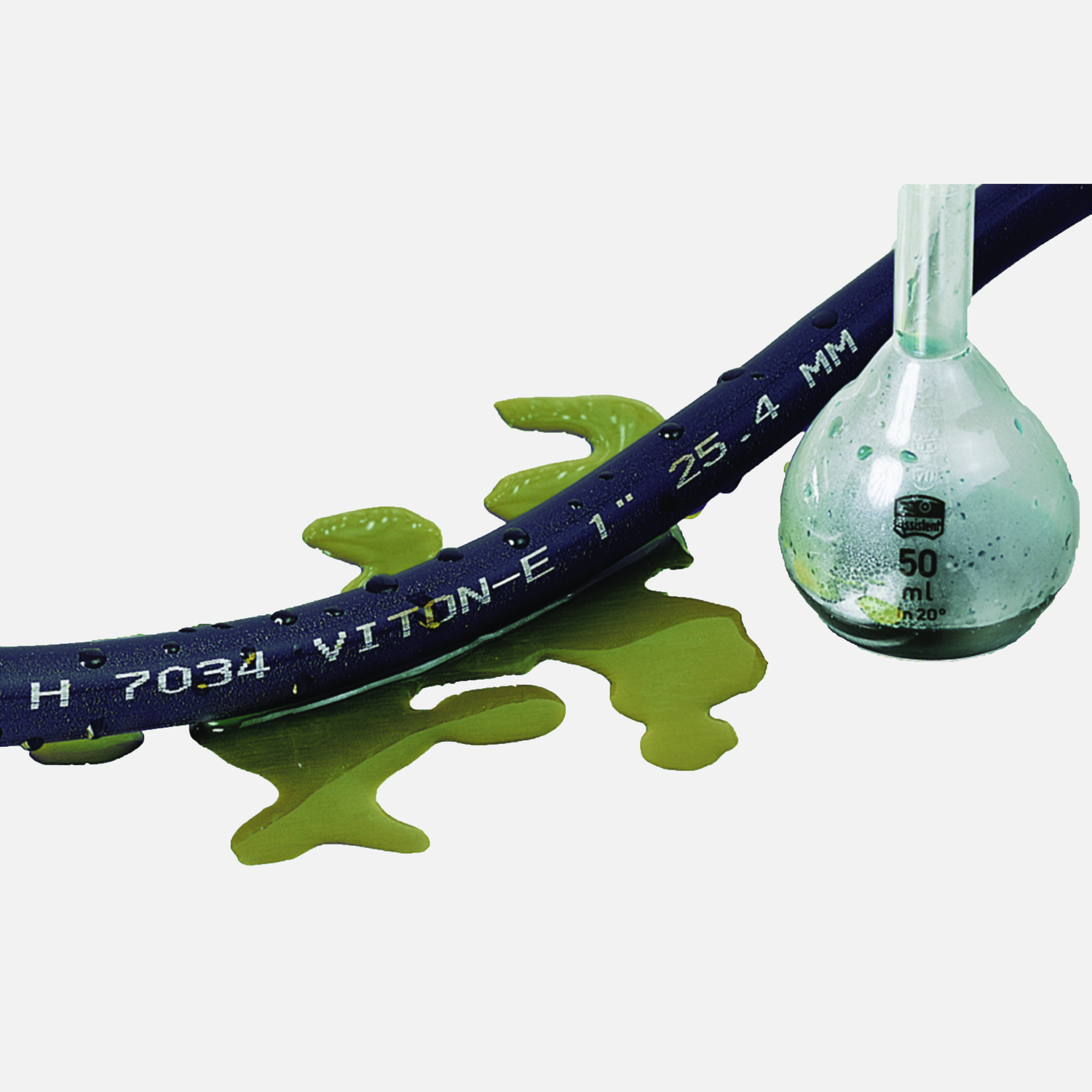

VITON®-E	Fluoropolymer	Black		02:01	3,2 - 50,8	-55 tot +220			x
TFE2	PTFE	Clear		02:01	0,86 - 11,94	-70 tot +260		x	x

3M
PRODUCT	MATERIAL	COLOUR	ADHESIVE LAYER	SHRINK RATIO	AVAILABLE DIMENSIONS (MM)	TEMPERATURE RESISTANT (°C)	HALOGEN FREE	FLAME RETARDANT	CHEMICAL RESISTANT
MDT	Polyolefin	Black		Up to 4.5:1	12.0 - 120.0	-55 to +130	x	x
MDT-A	Polyolefin	Black	x	Up to 4.5:1	12.0 - 102.0	-55 to +130		x
MDT-A-F 471	Polyolefin	Black	x	Up to 4.5:1	12.0 - 102.0	-55 to +130	x	x
HDT-A	Polyolefin	Black	x	Up to 4:1	12.0 - 128.0	-55 to +130		x
HDT-AN	Polyolefin	Black	x	Up to 4:1	12.0 - 130.0	-55 to +130	x
GTI-3000	Polyolefin	Multiple colours		3:1, 2:1 from 51mm	1.5 - 102.0 (1 meter pieces)	-55 to +135	x
GTI-A-3000	Polyolefin	Black	x	3:1	3.0 - 39.0	-55 to +135
HSR 3000	Polyolefin	Multiple colours		3:1	1.5 - 24.0 on reel	-55 to +135	x
KYNAR®	Polyvinylidene Fluoride	Clear		2:1	1.2 - 51.0	-55 to +175		x	x
VITON®-E	Fluoroelastomer	Black		2:1	3.2 - 51.0	-55 to +200		x	x
ATW	Polyolefin	Black		3:1	2.4 - 38.0	-55 to +135		x
CTW-602	Polyolefin	Black		2:1	1.2 - 102.0	-55 to +105		x
SFTW-202	Polyolefin	Multiple colours		2:1	1.2 - 102.0	-55 to +135		x
SFTW-203	Polyolefin	Black and Clear		3:1	1.5 - 39.0	-55 to +135		x
ETW-803	Polyolefin	Black	x	3:1	3.0 - 40.0	-55 to +110		x
ETW-804	Polyolefin	Black	x	4:1	4.0 - 52.0	-55 to +110		x
NTW-H	Elastomer	Black		2:1	3.2 - 102.0	-75 to +150		x
NTW-HT	Elastomer	Black		2:1	2.4 - 51.0	-75 to +150		x

TE Connectivity
PRODUCT	MATERIAL	COLOUR	ADHESIVE LAYER	SHRINK RATIO	AVAILABLE DIMENSIONS (MM)	TEMPERATURE RESISTANT (°C)	HALOGEN FREE	FLAME RETARDANT	CHEMICAL RESISTANT
ATUM	Polyolefin	Multiple colours	x	3:1 & 4:1	3,0 to 52,0	-55 to +110
BRST	Polyolefin	Black		02:01	4,0 to 24,0	-40 to +120
BSTS/BSTS-FR	Polyolefin	Multiple colours		03:01	7,62 to 114,30	-55 to +90		Only BSTS-FR
CGAT	Polyolefin	Black and Clear	x	03:01	3,0 - 39,0	-30 to +80
RNF-100	Polyolefin	Multiple colours		02:01	1,2 to 127,0	-55 to +135		x
RNF-150	Fluoropolymer	Black and White		02:01	1,2 to 25,4	-55 to +150		x
RNF-3000	Polyolefin	Multiple colours		03:01	1,5 to 39,0	-55 to +135		x
HTAT	Polyolefin	Black	x	04:01	4,0 to 48,0	-55 to +125
DR-25	Elastomer	Black		02:01	3,2 to 76,0	-75 to +150		x	x
DCPT	Polyolefin	Yellow/ green stripe		2:1 & 3:1	3,0 to 51,0	-55 to +135		x
DWFR	Polyolefin	Black	x	3:1 & 4:1	3,0 to 52,0	-40 to +110		x
DWP-125	Polyolefin	Multiple colours	x	03:01	3,2 to 50,8	-40 to +110
DWTC	Polyolefin	Clear	x	04:01	4,0 to 16,0	-55 to +75
ES1000	Polyolefin	Clear	x	04:01	5,72 to 17,78	-40 to +130
ES2000	Polyolefin	Black	x	04:01	5,72 to 17,78	-40 to +130		x
FL2500	Polyolefin	Black	x	04:01	7,62 to 17,79	-40 to +135		x
HRHT	Polyolefin	Black	Optional	Up to 6:1	19,05 to 114,30	-55 to +135
HT-200	Fluoropolymer	Clear		02:01	1,2 to 25,4	-70 to +200		x	x
LSTT	Polyolefin	Multiple colours		02:01	1,6 to 52,0	-40 to +125
NT-MIL	Elastomer	Black		1,8:1	3,2 to 101,6	-70 to +121
RHW	Polyolefin	Black	x	04:01	12,0 to 390,0	-40 to +110	x		x
RMW	Polyolefin	Black	Optional	03:01	10,0 to 180,0	-40 to +110			x
RP-4800	Polyolefin	Multiple colours		04:01	19,1 to 114,3	-55 to +135		x
RT-3	Polyolefin	Black		2,5:1	6,1 to 12,3	-55 to +135		x
RT555	Fluoropolymer	Black		02:01	3,2 to 50,8	-65 to +200		x	x
RW-175/RW-175-E	Polyvinylidene Fluoride	Black and Clear		02:01	1,2 to 50,8	-55 to +175		x	x
RW-200/RW-200-E	Fluoroelastomer	Black		02:01	3,2 to 50,8	-40 to +200		x	x
SCT	Polyolefin	Black	x	04:01	7,6 to 17,8	-40 to +150		x
SFR	Silicone elastomer	Black		1,75:1	6,4 to 50,8	-75 to +180		x
TAT-125	Polyolefin	Multiple colours	x	02:01	3,2 to 101,6	-55 to +110
TFE and TFER		Clear		1,8:1 to 3,2:1	0,8 to 32,0	-67 to +250			x
VERSAFIT	Polyolefin	Multiple colours		02:01	1,2 to 101,6	-55 to +135		x
VERSAFIT-3X	Polyolefin	Multiple colours		03:01	3,2 to 25,4	-55 to +135
VERSAFIT V2	Polyolefin	Multiple colours		02:01	0,8 to 30,0	-30 to +125		x
VERSAFIT V4	Polyolefin	Black		02:01	1,0 to 10,0	-30 to +125		x
XFFR		Black		03:01	7,62 to 76,20	-55 to +105	x	x
ZH-100		Black		02:01	3,2 to 51,0	-30 to +105	x	x
ZHTM		Black		02:01	3,0 to 50,0	-30 to +105		x
